積層陶瓷電容器
SMD 晶片電容
型態: SSC
特性
- 體積小、重量輕。
- 容量大、性能優及極佳的信賴性。
用途
- 民生用及工業用電子機器。
- 旁路應用。
- 一般用途。
規格
|
|
NPO
|
X5R
|
Rated Voltage
額定電壓
|
6.3VDC ~ 3000VDC
|
Capacitance Range
電容量範圍
|
1pF to 100μF
|
Capacitance Tolerance
容量誤差
Note:
B, C, D: Cap.<10pF
F, G, J, K, M, Z: Cap. ≥ 10pF
|
B = ±0.1pF
C = ±0.25pF
D = ±0.5pF
F = ±1%
G = ±2%
J = ±5%
|
J= ±5%
K = ±10%
M = ±20%
Z = +80% ~ -20%
|
Operating Temperature
操作溫度
|
-55℃ ~ +125℃
|
- 55℃ ~ +85℃
|

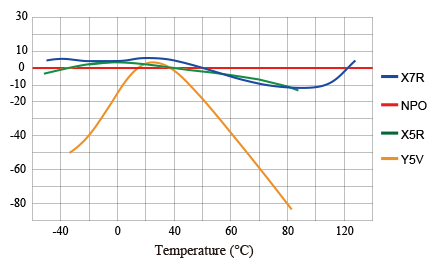

Capacitance Change
電容量變化
|
0 ± 30ppm/℃
|
±15%
|
Capacitance Test:
@25℃ or referred to +25℃
電容量測試
|
1.0Vrms±0.2, 1kHz±10%
1.0Vrms±0.2, 1MHz±10% for
capacitance ≤ 1000pF
|
1.0±0.2Vrms, 1kHz±10%
|
Q/Dissipation Factor
損耗因數
|
C＜30pF: Q ≥ 400 + 20C
C ≥ 30pF: Q ≥ 1000
0.1% Max.
|
≥ 50V: 2.5% ~ 3%
25V: ≤ 3.5% ~ 10%
16V: ≤ 3.5% ~ 10%
10V: ≤ 5.0% ~ 10%
6.3V: ≤ 10% ~ 15%
|
Insulation Resistance
絕緣阻抗
|
10GΩ or 500MΩ.μF, whichever is less at 25℃
|
Dielectric Strength
耐電壓
|
|
≤ 50V
|
250% of rated voltage for 5 seconds at 50mA
|
|
51V ~ 100V
|
250% of rated voltage for 5 seconds at 10mA
|
|
200V ~ 300V
|
200% of rated voltage for 5 seconds at 10mA
|
|
500V ~ 990V
|
150% of rated voltage for 5 seconds at 10mA
|
|
1000V ~ 3000V
|
120% of rated voltage for 5 seconds at 10mA
|
|
|
|
|
X7R
|
Y5V
|
Rated Voltage
額定電壓
|
6.3VDC ~ 3000VDC
|
Capacitance Range
電容量範圍
|
1pF to 100μF
|
Capacitance Tolerance
容量誤差
Note:
B, C, D: Cap.<10pF
F, G, J, K, M, Z: Cap. ≥ 10pF
|
J = ±5%
K = ±10%
M = ±20%
Z = +80% ~ -20%
|
M = ±20%
Z = +80% ~ -20%
|
Operating Temperature
操作溫度
|
-55℃ ~ +125℃
|
- 25℃ ~ +85℃
|
Capacitance Change
電容量變化
|
±15%
|
+30% ~ -80%
|
Capacitance Test:
@25℃ or referred to +25℃
電容量測試
|
1.0±0.2Vrms, 1kHz±10%
|
Q/Dissipation Factor
損耗因數
|
≥ 50V: 2.5% ~ 3%
25V: ≤ 3.5% ~ 10%
16V: ≤ 3.5% ~ 10%
10V: ≤ 5.0% ~ 10%
6.3V: ≤ 10% ~ 15%
|
≥ 50V: 5% ~ 7%
25V: ≤ 5% ~ 9%
16V: ≤ 7% ~ 12.5%
10V: ≤ 12.5%
6.3V: ≤ 20%
|
Insulation Resistance
絕緣阻抗
|
10GΩ or 500MΩ.μF, whichever is less at 25℃
|
Dielectric Strength
耐電壓
|
|
≤ 50V
|
250% of rated voltage for 5 seconds at 50mA
|
|
51V ~ 100V
|
250% of rated voltage for 5 seconds at 10mA
|
|
200V ~ 300V
|
200% of rated voltage for 5 seconds at 10mA
|
|
500V ~ 990V
|
150% of rated voltage for 5 seconds at 10mA
|
|
1000V ~ 3000V
|
120% of rated voltage for 5 seconds at 10mA
|
|
|

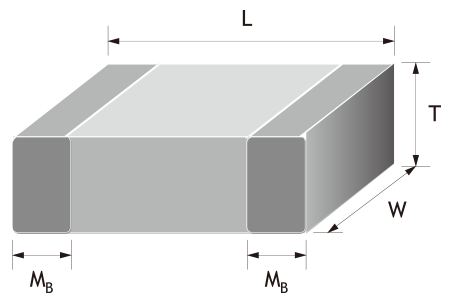

尺寸
|
Dimensions Inch (mm)
|
0402 (1005)
|
0603 (1608)
|
0805 (2012)
|
|
L (mm)
|
1.00±0.05
|
1.60+0.15/-0.10
|
2.00±0.20
|
|
W (mm)
|
0.50±0.05
|
0.80+0.15/-0.10
|
1.25±0.20
|
|
T (mm)
|
0.50±0.05
|
0.80+0.15/-0.10
|
0.60~1.25±0.20
|
|
MB (mm)
|
0.25+0.05/-0.10
|
0.40±0.15
|
0.50±0.20
|
|
Dimensions Inch (mm)
|
1206 (3216)
|
1210 (3225)
|
1808 (4520)
|
1812 (4532)
|
|
L (mm)
|
3.20±0.20
|
3.20±0.40
|
4.50±0.40
|
4.50±0.40
|
|
W (mm)
|
1.60±0.20
|
2.50±0.30
|
2.03±0.25
|
3.20±0.30
|
|
T (mm)
|
0.80~1.60+0.30/-0.10
|
0.95~2.5±0.30
|
1.25~2.0±0.20
|
1.25~2.50±0.30
|
|
MB (mm)
|
0.60±0.20
|
0.75±0.25
|
0.75±0.25
|
0.75±0.25
|
電容量範圍
|
Size
|
NPO
|
X5R
|
|
10/25V
|
50V
|
100V
|
6.3V
|
10V
|
16V
|
|
0402
|
Min.
|
0.5pF
|
0.5pF
|
0.5pF
|
0.22μF
|
0.056μF
|
0.027μF
|
|
Max.
|
470pF
|
220pF
|
150pF
|
1.0μF
|
0.1μF
|
0.1μF
|
|
0603
|
Min.
|
0.5pF
|
0.5pF
|
0.5pF
|
0.86μF
|
0.33μF
|
0.33μF
|
|
Max.
|
3300pF
|
1000pF
|
560pF
|
2.2μF
|
1.0μF
|
1.0μF
|
|
0805
|
Min.
|
0.5pF
|
0.5pF
|
0.5pF
|
2.2μF
|
2.2μF
|
2.2μF
|
|
Max.
|
0.012μF
|
4700pF
|
3900pF
|
10μF
|
4.7μF
|
4.7μF
|
|
1206
|
Min.
|
1.5pF
|
1.5pF
|
1.5pF
|
4.7μF
|
2.2μF
|
1.5μF
|
|
Max.
|
0.039μF
|
0.015μF
|
8200pF
|
22μF
|
10μF
|
4.7μF
|
|
1210
|
Min.
|
22pF
|
22pF
|
10pF
|
---
|
2.2μF
|
2.2μF
|
|
Max.
|
0.015μF
|
0.015μF
|
0.015μF
|
---
|
10μF
|
10μF
|
|
1812
|
Min.
|
---
|
1000pF
|
10pF
|
---
|
---
|
---
|
|
Max.
|
---
|
0.033μF
|
0.033μF
|
---
|
---
|
---
|
|
Size
|
X7R
|
Y5V
|
|
10/16V
|
25V
|
50V
|
100V
|
10V
|
16/25V
|
50V
|
100V
|
|
0402
|
Min.
|
0.012μF
|
5600pF
|
100pF
|
---
|
0.15μF
|
0.01μF
|
0.01μF
|
---
|
|
Max.
|
0.1μF
|
0.022μF
|
0.01μF
|
---
|
0.47μF
|
0.1μF
|
0.033μF
|
---
|
|
0603
|
Min.
|
0.082μF
|
0.033μF
|
100pF
|
100pF
|
0.68μF
|
0.22μF
|
0.01μF
|
---
|
|
Max.
|
0.22μF
|
0.1μF
|
0.1μF
|
0.01μF
|
1μF
|
1μF
|
0.15μF
|
---
|
|
0805
|
Min.
|
0.39μF
|
0.082μF
|
100pF
|
100pF
|
---
|
0.47μF
|
0.01μF
|
0.01μF
|
|
Max.
|
1μF
|
1μF
|
0.22μF
|
0.1μF
|
---
|
1μF
|
0.47μF
|
0.15μF
|
|
1206
|
Min.
|
0.27μF
|
150pF
|
150pF
|
150pF
|
---
|
0.01μF
|
0.01μF
|
0.01μF
|
|
Max.
|
4.7μF
|
1μF
|
1μF
|
0.22μF
|
---
|
1μF
|
1μF
|
0.22μF
|
|
1210
|
Min.
|
---
|
0.33μF
|
1000pF
|
1000pF
|
---
|
---
|
0.1μF
|
0.01μF
|
|
Max.
|
---
|
1μF
|
1μF
|
0.56μF
|
---
|
---
|
1μF
|
0.33μF
|
|
1812
|
Min.
|
---
|
0.68μF
|
1000pF
|
1000pF
|
---
|
10μF
|
1μF
|
---
|
|
Max.
|
---
|
1μF
|
1μF
|
1μF
|
---
|
47μF
|
6.8μF
|
---
|
電容量範圍(高壓)
|
Size
|
NPO
|
|
200V
|
250V
|
500V
|
1000V
|
2000V
|
3000V
|
|
0603
|
Min.
|
22pF
|
22pF
|
---
|
---
|
---
|
---
|
|
Max.
|
100pF
|
100pF
|
---
|
---
|
---
|
---
|
|
0805
|
Min.
|
0.5pF
|
0.5pF
|
0.5pF
|
---
|
---
|
---
|
|
Max.
|
820pF
|
390pF
|
390pF
|
---
|
---
|
---
|
|
1206
|
Min.
|
1.5pF
|
1.5pF
|
1.5pF
|
1.5pF
|
1.5pF
|
---
|
|
Max.
|
2200pF
|
1000pF
|
1000pF
|
470pF
|
220pF
|
---
|
|
1210
|
Min.
|
10pF
|
10pF
|
10pF
|
10pF
|
10pF
|
---
|
|
Max.
|
3900pF
|
2700pF
|
1800pF
|
470pF
|
220pF
|
---
|
|
1808
|
Min.
|
---
|
---
|
---
|
2.2pF
|
2.2pF
|
2.2pF
|
|
Max.
|
---
|
---
|
---
|
1000pF
|
680pF
|
270pF
|
|
1812
|
Min.
|
10pF
|
10pF
|
10pF
|
10pF
|
10pF
|
10pF
|
|
Max.
|
6800pF
|
3300pF
|
3300pF
|
1500pF
|
1000pF
|
470pF
|
|
Size
|
X7R
|
Y5V
|
|
200V
|
250V
|
500V
|
1000V
|
2000V
|
3000V
|
200V
|
250V
|
|
0603
|
Min.
|
---
|
---
|
---
|
---
|
---
|
---
|
---
|
---
|
|
Max.
|
---
|
---
|
---
|
---
|
---
|
---
|
---
|
---
|
|
0805
|
Min.
|
100pF
|
100pF
|
100pF
|
---
|
---
|
---
|
0.01μF
|
0.01μF
|
|
Max.
|
0.022μF
|
0.022μF
|
2700pF
|
---
|
---
|
---
|
0.068μF
|
0.068μF
|
|
1206
|
Min.
|
150pF
|
150pF
|
150pF
|
150pF
|
150pF
|
150pF
|
0.01μF
|
0.01μF
|
|
Max.
|
0.1μF
|
0.1μF
|
0.033μF
|
4700pF
|
1500pF
|
1000pF
|
0.15μF
|
0.15μF
|
|
1210
|
Min.
|
1000pF
|
1000pF
|
1000pF
|
1000pF
|
---
|
---
|
0.01μF
|
0.01μF
|
|
Max.
|
0.47μF
|
0.47μF
|
0.056μF
|
0.01μF
|
---
|
---
|
0.15μF
|
0.15μF
|
|
1808
|
Min.
|
---
|
---
|
---
|
150pF
|
150pF
|
150pF
|
---
|
---
|
|
Max.
|
---
|
---
|
---
|
0.01μF
|
2200pF
|
1000pF
|
---
|
---
|
|
1812
|
Min.
|
1000pF
|
1000pF
|
1000pF
|
270pF
|
270pF
|
680pF
|
0.01μF
|
0.01μF
|
|
Max.
|
0.47μF
|
0.47μF
|
0.1μF
|
0.015μF
|
4700pF
|
820pF
|
0.68μF
|
0.68μF
|
