Metallized Polypropylene Film
AC Motor Start and Run Capacitors - Aluminum Case SMPA-CBB65 Series
SSE SMPA Capacitor CBB65
Features
Low dissipation, high insulation resistance.
Self-healing character, steady electric performance.
Anti-striking current, strong over carrier capacity.
Reliable safety with inner anti-explosion devices.
Applications
This type of the capacitor combines the capacitor of air-conditioner compressor and capacitor of fan motor together. Besides all the advantage of CBB65A-1, it also has advantages of small dimension and convenient installation. It helps starting and running for compressor and motor.
Specifications
Rated Voltage 250 ~ 500VAC
Capacitance Range 2.5 ~ 85μF
Capacitance Tolerance ±5% (J)
Class of operation 30,000h(Class A) / 10,000h(Class B) / 3,000h(Class C)
Class of safety protection S2
Rated Working Frequency Range 50 ~ 60Hz
Maximum permissible voltage Vmax 1.1 x VR (VR=Rated voltage)
Maximum permissible current Imax 1.3 x IR (IR=Rated current)
AC Test voltage terminal to terminal 2Un/60s
Isulation voltage terminals to case 2Un+1000VAC (≧ 2000VAC) 60s
Dissipation Factor (DF) ≦ 0.002 (100Hz, 20℃)
Climatic category 40/85/21, 40/70/21

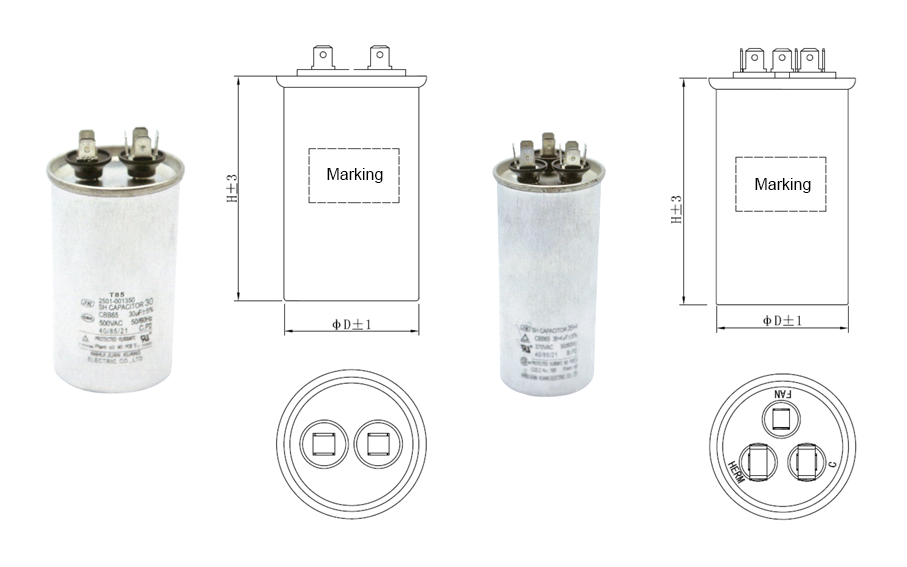

Constructions
Case Size List
Capacitance
(μF)
Rated Voltage
(VAC)
Dimensions
(Unit: mm)
D x H
2.5 ~ 70
35+2.5 ~ 50+
250 30 x 55 ~ 50 x 100
50 x 65 ~ 50 x 85
10 ~ 85
10+10 ~ 80+10
370 50 x 65 ~ 60 x 100
50 x 65 ~ 60 x 110
5 ~ 90
10+5 ~ 80+10
450/440 50 x 55 ~ 65 x 125
50 x 65 ~ 63.5 x 125
20 ~ 50 500 50 x 75 ~ 63 x 150

Please download SMPA-CBB65 catalog or contact us for more details.
